Recycling Hydraulic Auto Tilting Car Lift Machine

SUMAC Auto Recycling Equipment Co.,Ltd is one of the most professional manufacturers and suppliers of recycling hydraulic auto tilting car lift machine in China. Please feel free to buy high quality recycling hydraulic auto tilting car lift machine at competitive price from our factory. Introduction

Tilting car lift uses a forklift to place the scrap vehicle on the bracket, which can achieve the functions of propelling, lifting, lowering and 90 degrees flipping angle.
According to different disassembling requirements, the operator can adjust the height or angle in all directions according to the requirement.
It helps reduce the handling of vehicles to different stations, improve production efficiency and save costs.
FL-04 is equipped with mechanical safety lock device, so the vehicle has automatic protection of mechanical safety lock at any position when lifting and flipping.

Structure and principle

Tilting vehicle lift is suitable for one-stop disassembly platform, one of the necessary equipment to complete the entire disassembling process. It has the advantages of high efficiency, safety, independence, multi-direction and easy operation.
According to the customer’s requirements, you could choose PLC with remote control to achieve automatic operation. At the same time, each action achieves interlocking to ensure the safety of the operator by PLC system.

Technical data

Loading capacity: 3500kg

Flip angle: 90 degree

Power: 4Kw

Fuel tank capacity: 35L

Machine size: 5000x1650x2500mm

Working area: 7000x6500x4500mm

Advantages

◆ All-round disassembling of vehicles

◆ Hydraulic control

◆ Mechanical safety lock, more safe

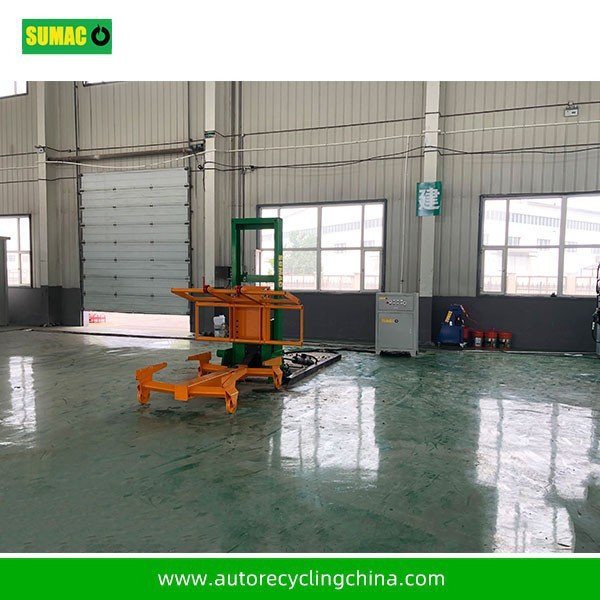

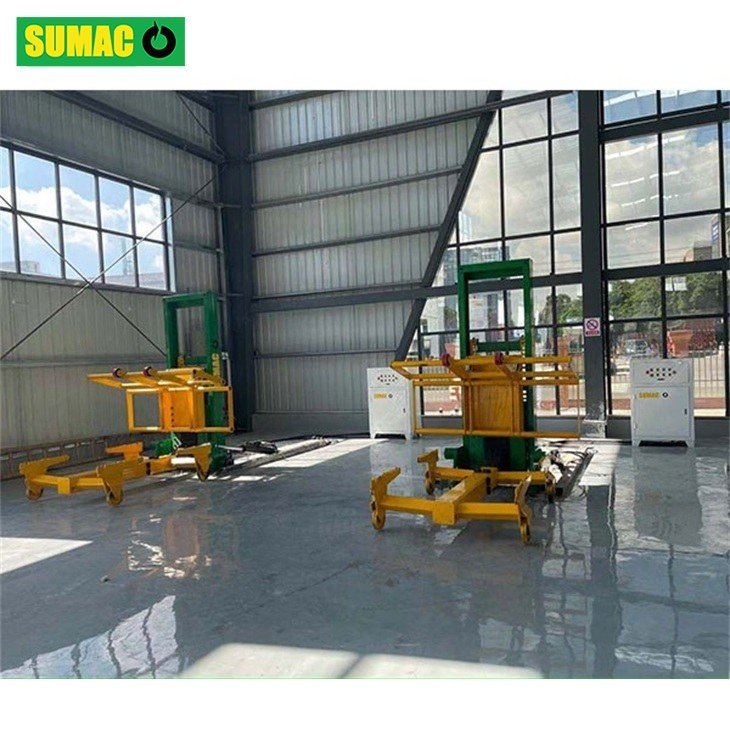

Workshop
