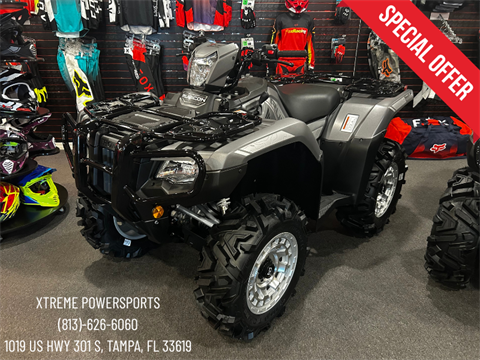

2025 Honda FourTrax Foreman Rubicon 4×4 Automatic DCT EPS Deluxe

@ xtremepowersportstampa Ask owner

Every model in our FourTrax Foreman Rubicon 4×4 lineup is ready to work hard and play hard, and this year we’re offering three trim levels that give you a great combination of features: our FourTrax Foreman Rubicon 4×4 EPS with Electric Power Steering, our FourTrax Foreman Rubicon 4×4 DCT EPS that adds our exclusive Honda Automatic Dual Clutch Transmission and an option to choose TrueTimber® Atera camo, and our FourTrax Foreman Rubicon 4×4 DCT EPS Deluxe with aluminum wheels, color-matched suspension and painted bodywork. All three feature independent rear suspension (IRS) for a smooth ride over rough terrain. And all three also share the same reliable, proven 518cc Honda engine that punches way above its class when it comes to efficiency and power.

Original price was: $10,799.00.Current price is: $10,499.00.

×
Loading...
Added to wishlistRemoved from wishlist 0

General Information

Manufacturer
Honda

Model Year
2025

Model
FourTrax Foreman Rubicon 4×4 Automatic DCT EPS Deluxe

Model Code
TRX520FA7S

Stock Number
N/A

Color
Matte Gray Metallic

Brakes/Wheels/Tires

Brakes

Front – Dual 190 mm discs

Rear – Dual 170 mm discs

Tires

Front – 25 x 8-12

Rear – 25 x 10-12

Dimensions

Length
86 in.

Height
48.7 in.

Width
47.4 in.

Weight
Curb – 719 lb. (includes all standard equipment, required fluids and a full tank of fuel—ready to ride)

Ground Clearance
9.7 in.

Wheelbase
50.9 in.

Seat Height
36.3 in.

Drivetrain

Transmission
Five-speed automatic dual-clutch with reverse and Low / Drive sub-transmission

Drive System
4×4

Drive
Direct front and rear driveshafts with TraxLok® and locking front differential

Engine

Engine
Four-stroke, OHV; two valves per cylinder, longitudinally mounted

Cooling
Liquid

Cylinders
Single

Displacement
518 cc

Bore x Stroke
3.8 x 2.8 in. (96 x 71.5 mm)

Compression Ratio
9.5:1

Clutch
Automatic

Fuel System
Programmed fuel injection (PGM-FI); 36 mm throttle body

Emissions
Meets current EPA off-road emissions standards

Starting
Electric with optional auxiliary recoil

Fuel Capacity
3.9 gal. including 1.3 gal. reserve

Operational

Suspension

Front – Independent double-wishbone; 7.3 in. travel

Rear – Independent dual-arm; 8.5 in. travel

Towing Capacity
1,322 lb.

Capacity

Front Rack – 99 lb.

Rear Rack – 187 lb.

Other

Warranty
One year, transferable, limited

Vendor Information

  • Store Name: Xtreme Powersports
  • Vendor: Xtreme Powersports
  • Address: 1019 S US Highway 301
    Tampa, FL 33619
Added to wishlistRemoved from wishlist 0
2025 Polaris Ranger Crew XP 1000 Premium

2025 Polaris Ranger Crew XP 1000 Premium

Original price was: $23,199.00.Current price is: $21,199.00.
9%
★★★★★(0)
Sold by Xtreme Powersports
Add to cart
Added to wishlistRemoved from wishlist 0
2024 Honda NC750X DCT

2024 Honda NC750X DCT

Original price was: $9,999.00.Current price is: $8,999.00.
10%
★★★★★(0)
Sold by Xtreme Powersports
Add to cart
Added to wishlistRemoved from wishlist 0
2025 Honda CB1000 Hornet SP

2025 Honda CB1000 Hornet SP

Original price was: $11,099.00.Current price is: $10,999.00.
1%
★★★★★(0)
Sold by Xtreme Powersports
Add to cart
Added to wishlistRemoved from wishlist 0

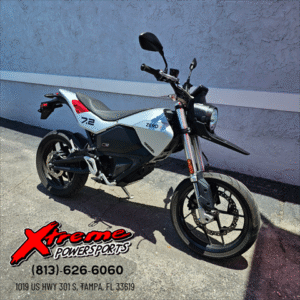

2022 Zero Motorcycles FXE ZF7.2 Integrated
